The “Smart Choice” for laboratory equipment
Shaking Water Baths
BWZ-1 & BWZ-2
NEW! Precise Temperature. Gentle Stirring

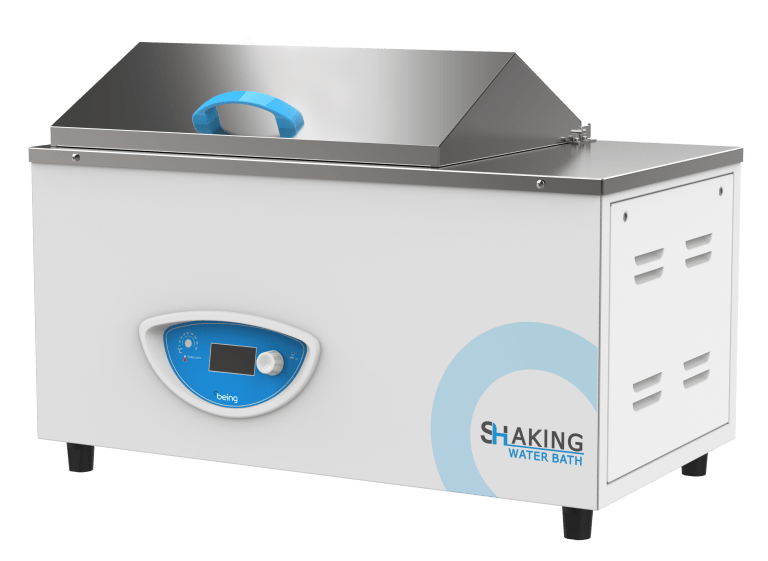

The BEING BWZ shaking water baths combine a general-purpose water bath with a reciprocating shaker motion to provide gentle stirring with precise laboratory temperature control suitable for direct and auxiliary heating of biological, chemical, physical, plant, chemical, and other experimental samples for Escherichia coli detection, sample thawing, bacterial detection, incubation microbial experiments, cell culture, food testing pretreatment, and more.
Construction Features
- Available in 2 sizes: 33L and 48L chambers
-
Corrosion-resistant stainless steel chamber and heater
- Maintenance-free operation
- Rounded corners for quick and easy cleaning
- Corrosion-resistant stainless steel wire rack designed to handle a variety of test tube and flasks.
- Hinged stainless steel gable chamber cover holds heat in.
Controller Features
- Dual independent controllers
- PID automatic control provides accurate and reliable temperature control
- Large intuitive LCD display
- Automatic power on/off
- Programmable function
- Turn and push temperature, speed, and timer setting
- Fixed value program
- Untimed and timed programs
- Program time from 1 minute to 99 hours 59 minutes
Performance Features
- Temperature Range: Ambient + 5oC to 100oC
- Temperature Uniformity: ± 0.2oC
- Temperature Stability: ± 0.3oC
- Speed: 30 - 180 rpm
- Amplitude: 30mm
Safety Features
- Independent over-temperature protection meets DIN 12880 International standard requirements
- Temperature limit protection
- Over-current protection
- Speed: 30 - 180 rpm
- Power off memory

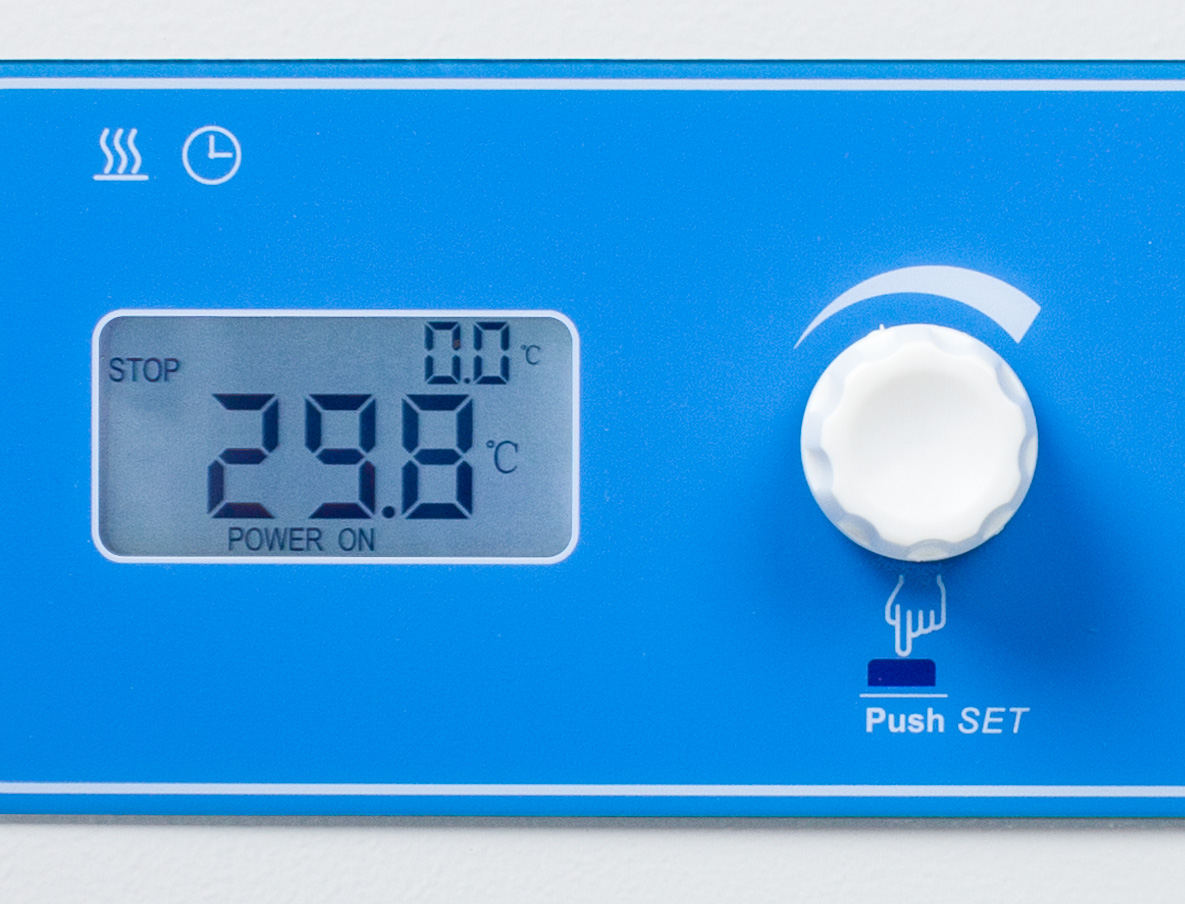

Intelligent controller with bright, easy-to-understand LCD display.

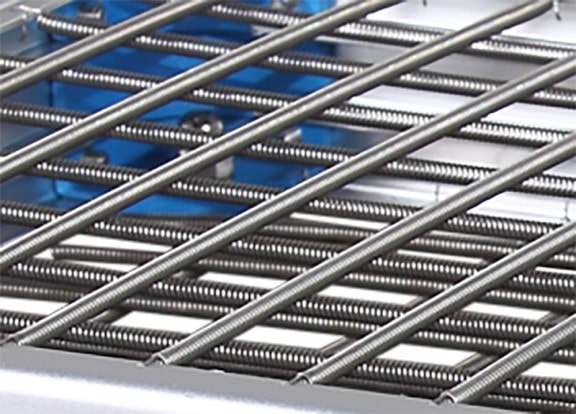

The stainless steel shaking platform utilizes a spring wire rack design for maximum flask, test tube, and container flexibility.

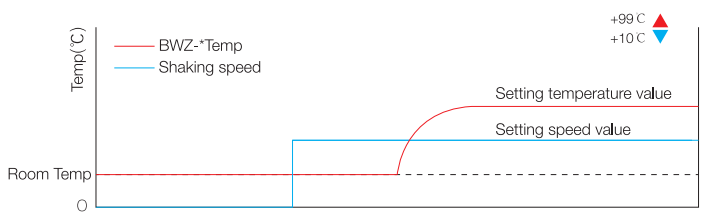

Reciprocating motion and temperature are controlled independently.

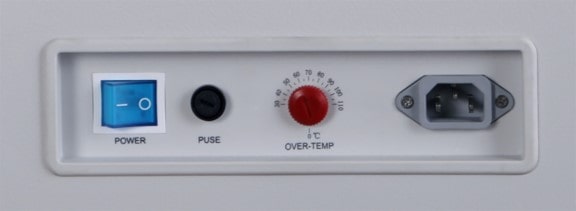

A fuse and an independent adjustable over-temperature switches protects the bath and user
Specifications
| Model | BWZ-1 | BWZ-3 | ||
|---|---|---|---|---|
| Capacity | Chamber Volume (L) | 33 | 48 | |
| Controller | ||||
| Temperature Range | Ambient + 9oF to 212oF / Ambient + 5oC to 100oC | |||
| Temperature Uniformity (@37oC) | ± 0.2oC | |||
| Temperature Stability (@37oC) | ± 0.3oC | |||
| Display Resolution | 0.1 | |||
| Timer (hh:mm) | 00:01 - 99:59 | |||
| Shaker | ||||
| Speed Range (cycles per min.) | 0 and 30 - 180 | |||
| Amplitude (mm) | 30 | |||
| Electrical | ||||
| Power Consumption (W) | 1250 | 1650 | ||
| Power Requirement | 120VAC / 60Hz | |||
| Plug Type | NEMA 5-15 | |||
| Dimensions | ||||
| Tray Depth | (in / mm) | 6.1 / 155 | ||
| Tray | W x H x D(in / mm) | 14.7 x 11.9 x 9.5 375 x 303 x 240 |
21.6 x 11.9 x 9.5 550 x 303 x 240 |
|
| Interior | 17.1 x 12.5 x 9.5 435 x 317 x 250 |
24.2 x 12.5 x 9.5 615 x 317 x 250 |
||
| Exterior | 26.3 x 15.3 x 13.3 670 x 390 x 340 |
33.5 x 15.3 x 13.3 850 x 390 x 340 |
||
| Net Weight (lb / Kg) | 48.5 / 22 | 63.9 / 29 | ||
| Catalog Number | WZ21033U | WZ21048U | ||
