BEING Scientific General Purpose Laboratory Water Baths provide users with a constant temperature environment that only can be obtained when samples are totally immersed in water. Our line of lab water baths come in a variety of sizes and are suitable for direct heating and auxiliary heating of biological, chemical, physical, plant, chemical, and other experimental samples. Ideal applications for each Being Water Bath include routine laboratory temperature control, E.Coli detection, sample thawing, bacterial detection, incubation microbial experiments, cell culture, and food testing pretreatment.

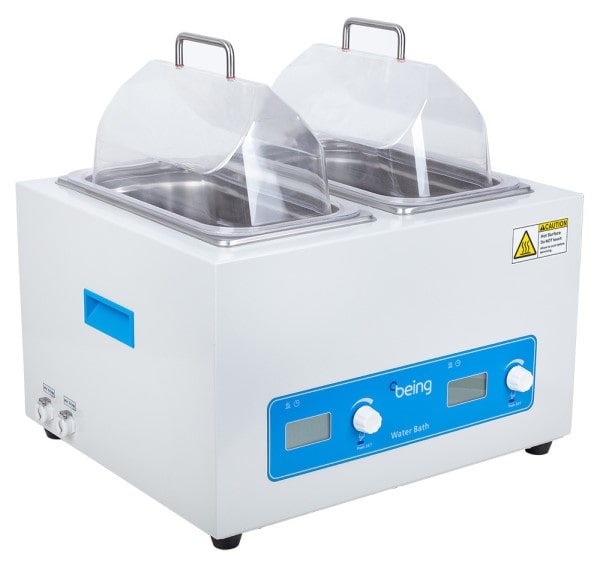

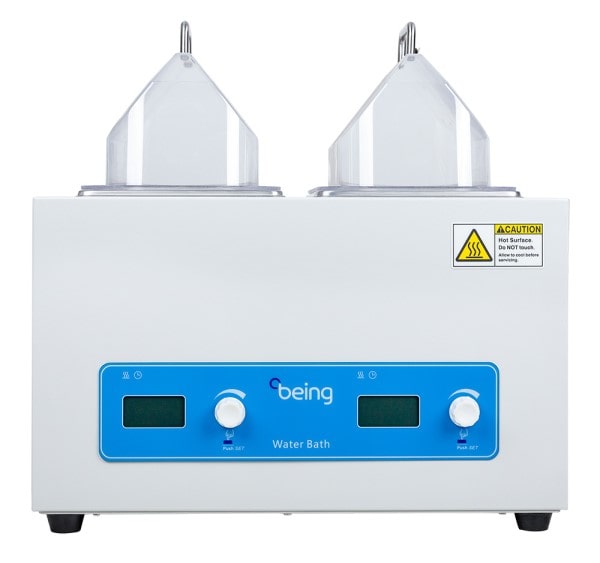

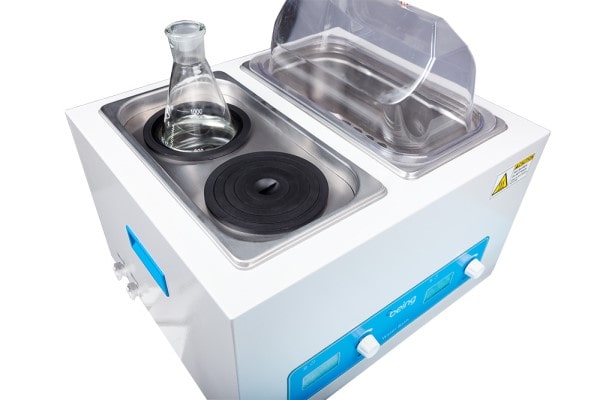

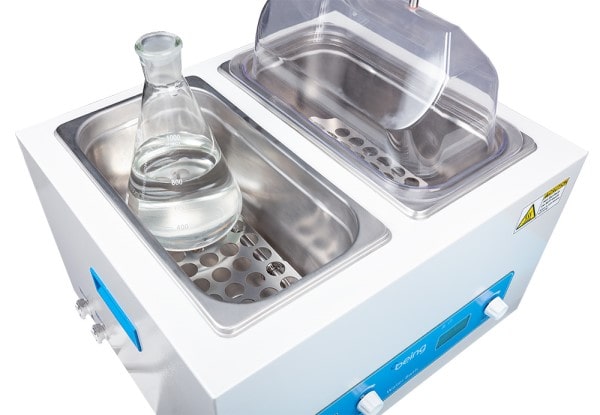

Being Scientific BWB-Series
Performance and Features
-
PID temperature controller.
-
Temperature Range:Amb+5℃ - 99℃
Convenience
-

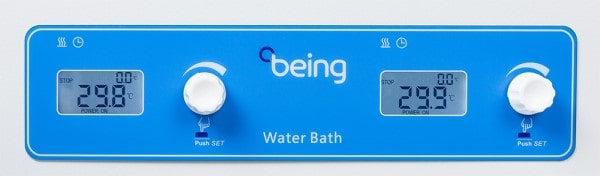

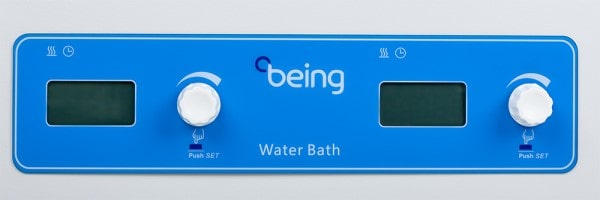

Large LCD display screen and interface provides for user-friendly operation.
-
Easy to set Adjustable Timer.(1 minute to 5,999 minutes)
-
Maintenance-free operation with easy to clean surface.
-
Variety of Accessories are available to meet application demands.
-
Both heater and bath chamber are made of corrosion-resistant stainless steel.
-
Bath Chamber is easy to clean with its curved corner design.
-

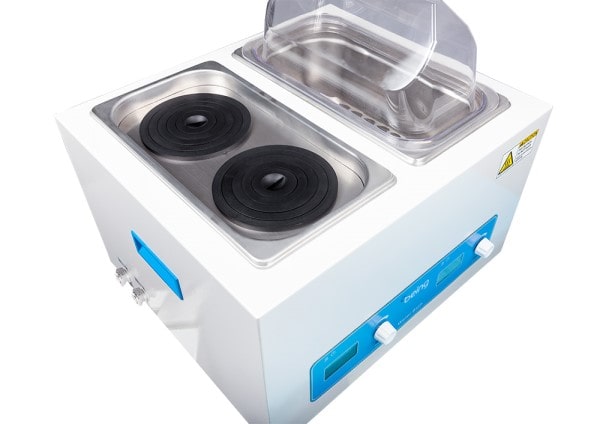

The standard stainless-steel bottom plate, helps prevents direct contact by accessories and tubes to heating element and sensors.
-

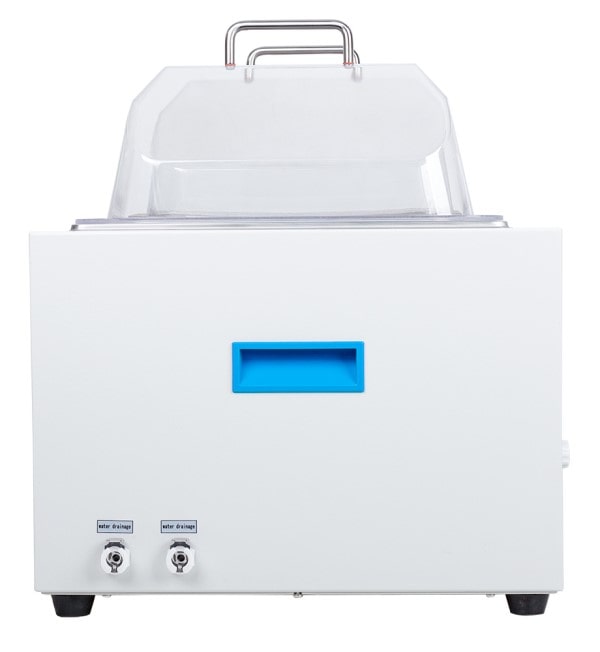

Drain valve makes emptying of bath water fast and easy for cleaning and moving.
-
Integrated Stainless Steel Gable Cover
-
Carry handles for easy transportation and lifting
Safety & Peace of Mind
-
Built-in power interruption protection function, automatic run after power interruption.
-

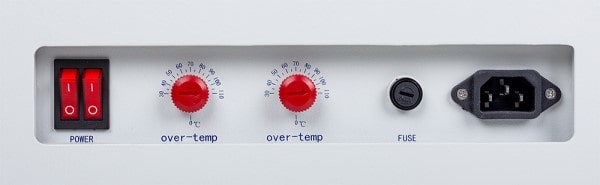

Independent Over-temperature protection meets DIN 12880 International standard requirements.
-
Temperature deviation alarm.
-
Over current protection alarm.
-
Low-Level Water Sensor Alarm” indicates that water level is dangerously low, and water needs to be added.
Capacity |
5L |
|---|---|
Temperature Range |
Ambient+9 to 212℉ |
Stability @37℃ |
±0.2C |
Uniformity @37℃ |
±0.3℃ / ±0.54℉ |
Timer (hh:mm) |
00:01 ~ 99:59 |
Interior Dimensions (WxHxD) |
11.0×5.9×5.1(inch) 280×150×130 (mm) |
Exterior Dimensions (WxHxD) |
13.6×13.4×7.9 (inch) 345×340×200 (mm) |
Net Weight |
11 lb / 5kg |
Electrical Plug Type |
NEMA 5-15 |
Power Supply |
120V (±10%) 50/60Hz |
Power Consumption |
500W |
Temperature Resolution |
0.1 |
Tracking Alarm |
≤0.2℃ / ≤3.6℉ |
Catalog Number |
BW21205U |
Warranty |
2 years |
No, only fixed-value programs are available.
Yes.
BEING puts a product identification label above the power cord.
Yes.
Yes. We would need the unit's model and serial numbers if the certificate didn't come with your BEING instrument.
Deionized water.
Yes. It is recommended to tightly pack the beads around the heating element below the platform, then place your flask(s) on the platform and fill in around them.

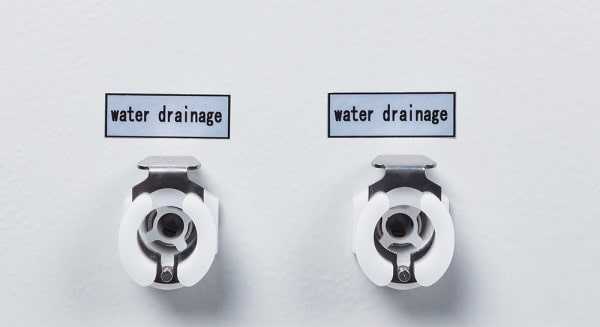

Inserting the supplied drain hose into the drain valve will allow the water to drain. Press the release button to close the valve and stop the water from flowing. See the video below.
Inserting Drain Hose For BWB
