The “Smart Choice” for laboratory equipment
PRODUCT INFO

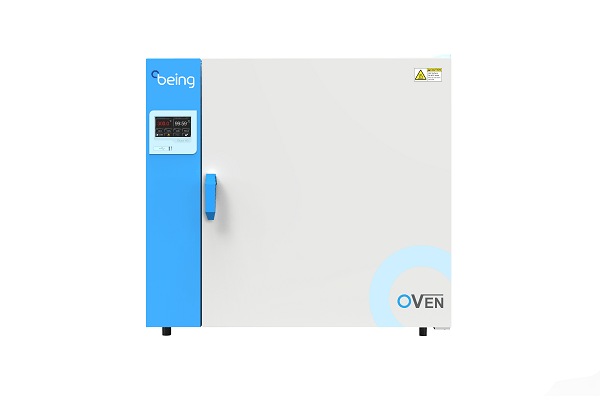

The BON Natural Convection Drying Oven series offers low air turbulences for gentle drying and heating. This is ideal for sterilization, powder drying and high temperature storage. The 4.3-inch touchscreen controller provides fast, accurate, and uniform heat displacement. Users can preset 8 periods and 8 steps for a total of 64 programs. Temperature and time can be set and programmed at the same time. The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation. These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.
Performance and Features
-
Temperature Range:Amb+10°C - 300°C .
-
P.I.D temperature controller provides accurate and reliable temperature control.
-
Natural convection heating allows the sample temperature to be uniform, suitable for sterilization, powder drying and high temperature storage.
-
Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
-
NEW color touchscreen controller.
-
USB data collection port
Convenience
-
Inner chamber is made from corrosion-resistant mirror stainless steel.
-
Round curved inner angle is easy to clean.
-
Anti-skid shelf design, easy to operate by single hand.
Safety & Peace of Mind
-
Auto Start Feature after power loss/return.
-
Temperature deviation alarm.
-
Over temperature set point alarm.
-
Over current protection.
-
Independent overtemperature limit controller for added safety.
Stackable |
No |
|---|---|
Internal Volume |
1.1 cu ft (30 liters) |
Temperature Range |
Ambient+18℉ to 572℉ |
Uniformity at 100℃ |
±3.0 |
Temperature Stability |
±0.5℃ |
Display Resolution |
0.1 |
Maximum # of Shelves |
5 |
|
Test Hole |
Ø5mm |
# of Shelves |
2 |
Max. Load per Shelf |
44.1 lb / 20Kg |
Internal Dimension (WxHxD) |
12.6×12.6×11.8 (inch) |
External Dimension (WxHxD) |
24.0×22.8×20.5 (inch) |
Net Weight |
94.8 lb / 43Kg |
Timer (hh:mm) |
00:01 ~ 99:59 |
Electrical Requirement |
120V 60Hz |
|
Electrical Plug Type |
NEMA 5-15 |
Power Consumption |
1200W |
Heating Rate to 100℃ |
40 mins |
Catalog Number |
BO211030U |
Warranty |
2 years |
Certification |
ETL |
Shelf Part Number |
P19263 |
| Packaging Materials | Paper box with pallet |
|---|---|
| Outside Dimensions (in./mm) | |
| 38 x 29 x 37 | |
| 970 x 750 x 950 | |
| Shipping Weight (lbs./kg) | |
| 184.8 | |
| 84.0 | |
| Freight Class | 125.0 |
| Packaging Materials | Paper box with pallet |
|---|---|
| Outside Dimensions (in./mm) | |
| 43 x 33 x 43 | |
| 1100 x 840 x 1090 | |
| Shipping Weight (lbs./kg) | |
| 253.0 | |
| 115.0 | |
| Freight Class | 125.0 |
| Packaging Materials | Paper box with pallet |
|---|---|
| Outside Dimensions (in./mm) | |
| 29 x 27 x 30 | |
| 740 x 700 x 760 | |
| Shipping Weight (lbs./kg) | |
| 116.6 | |
| 53.0 | |
| Freight Class | 110.0 |
| Packaging Materials | Paper box with pallet |
|---|---|
| Outside Dimensions (in./mm) | |
| 33 x 24 x 32 | |
| 850 x 620 x 810 | |
| Shipping Weight (lbs./kg) | |
| 127.6 | |
| 58.0 | |
| Freight Class | 110.0 |
