Over 55,000 units installed in 2019
The “Smart Choice” for laboratory equipment

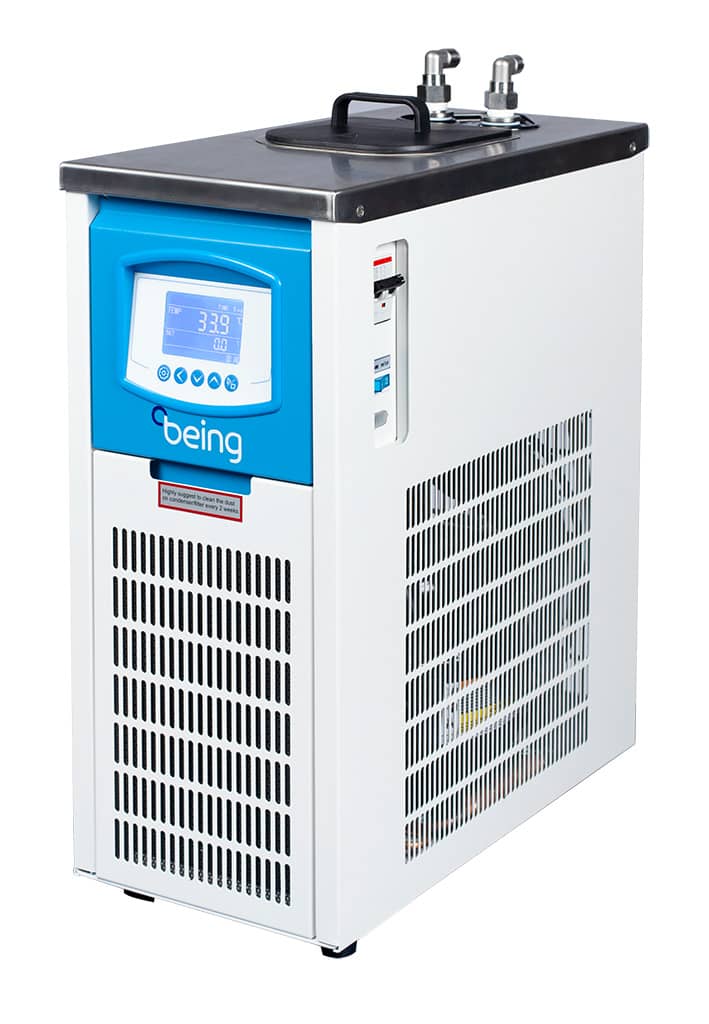

Isometric view

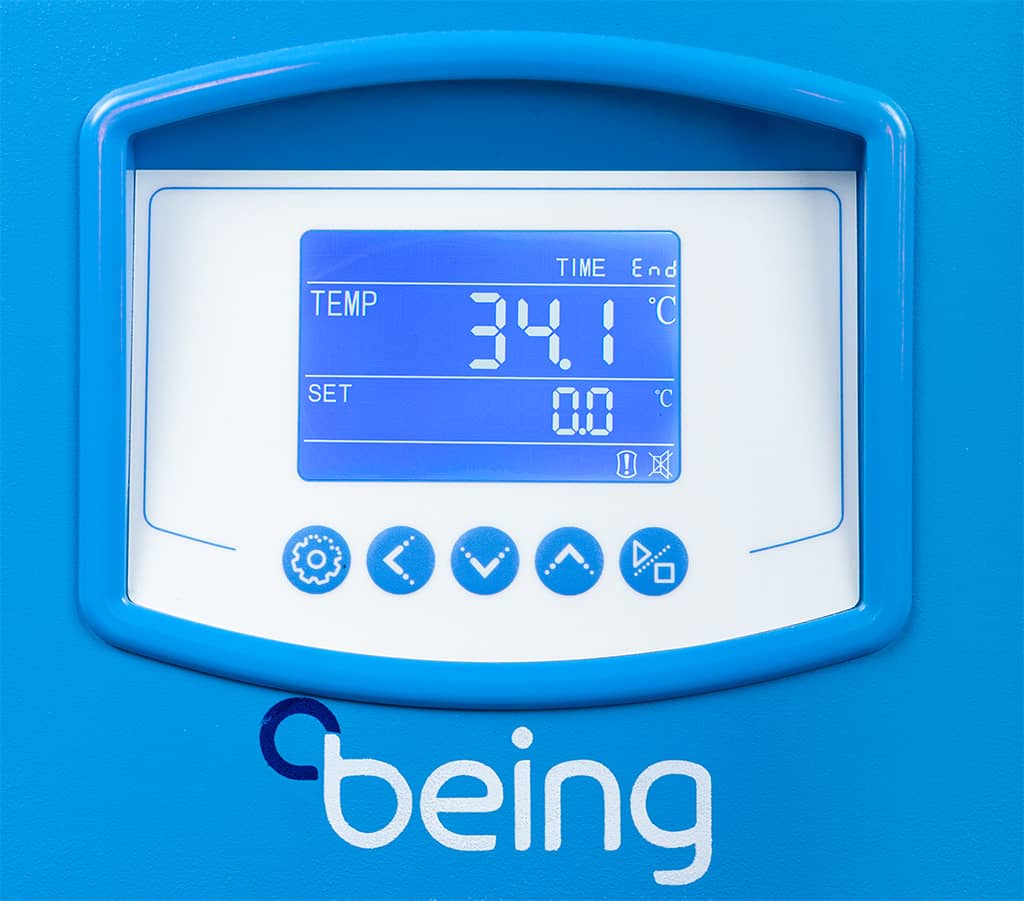

Bright LCD Intelligent Controller

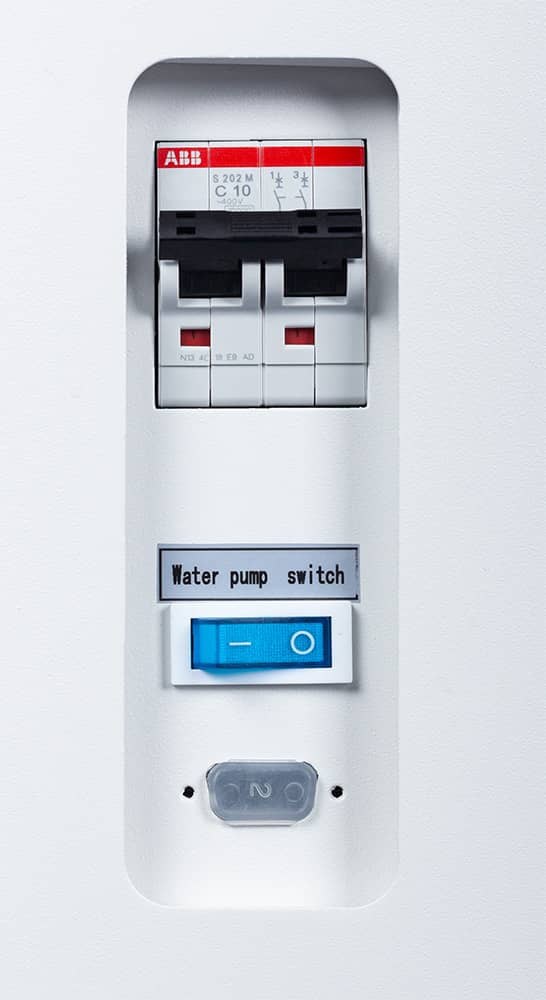

Circuit breaker (power on/off) and independent pump power on/off switch

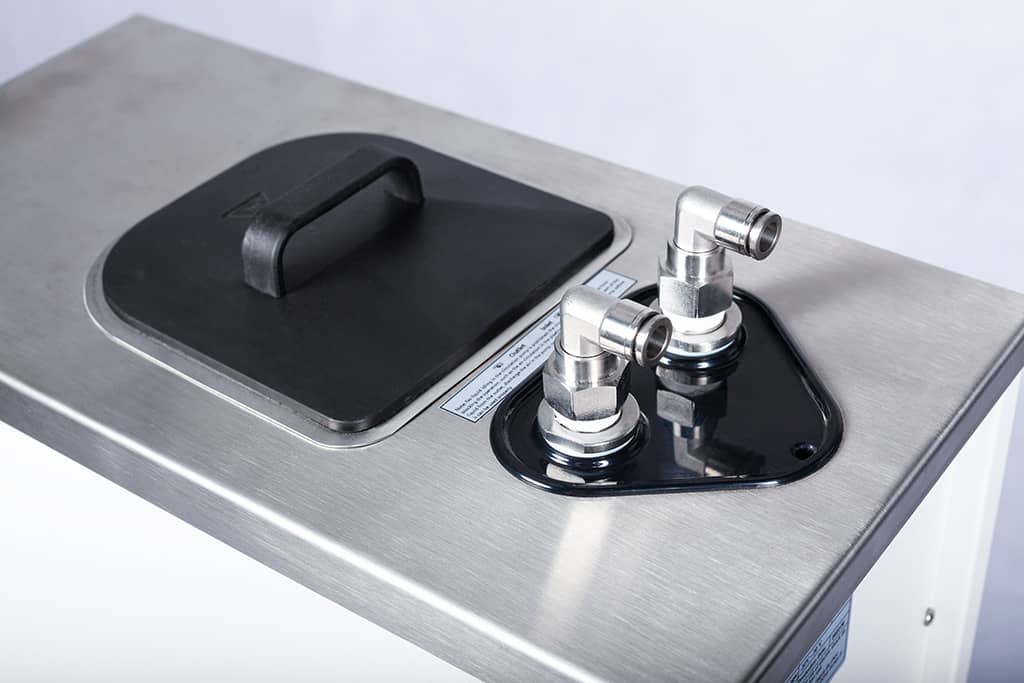

Recirculating chiller's storage tank fill and inlet/outlet ports

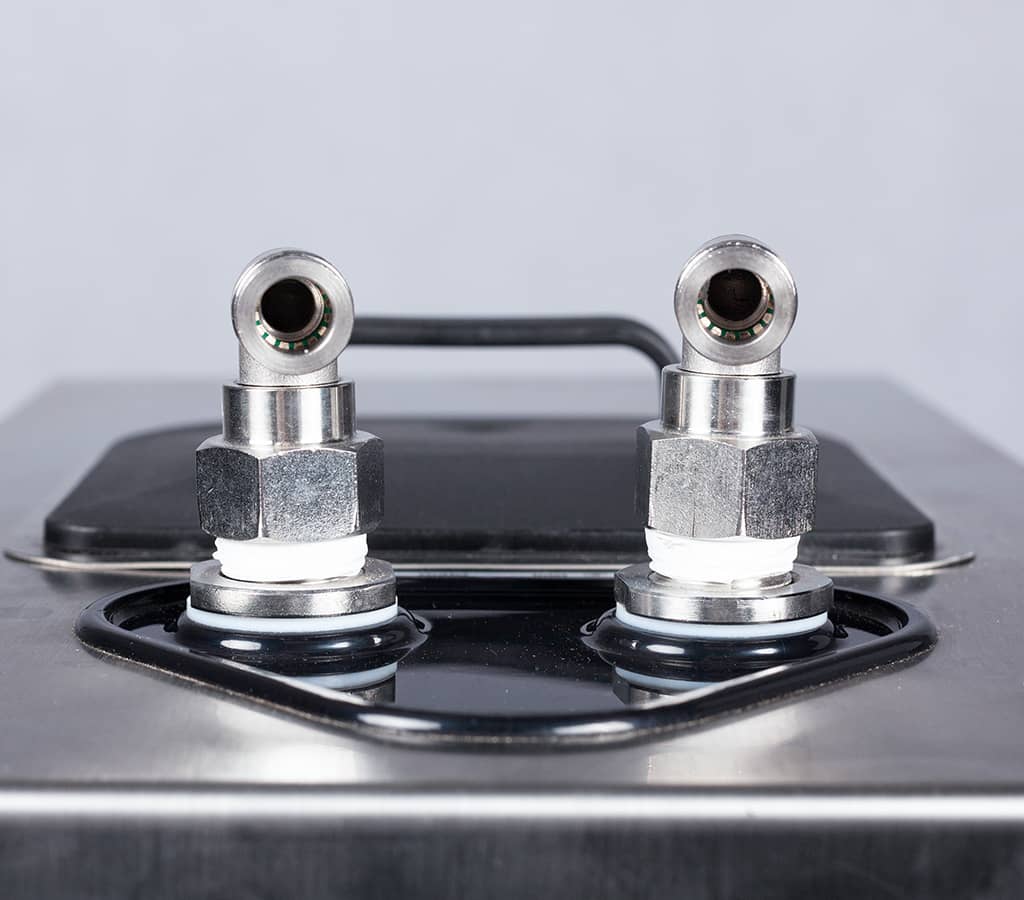

10mm OD push-to-connect fittings
Recirculating chiller's stainless steel storage tank

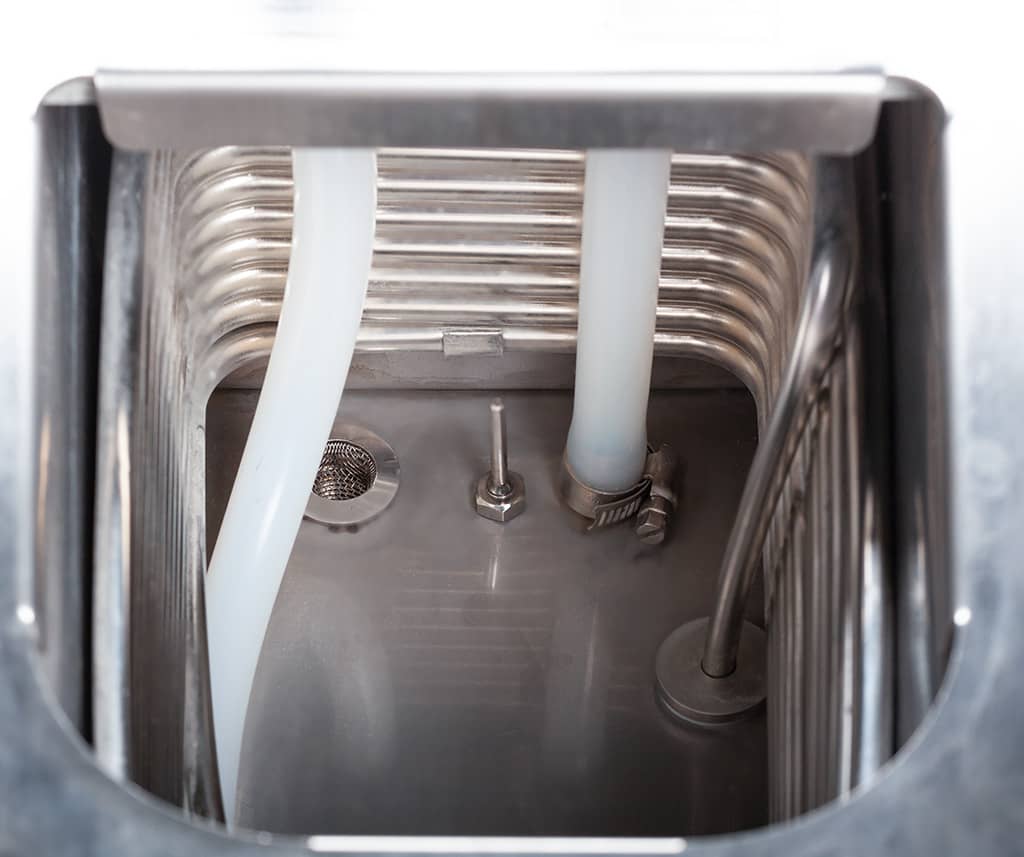

Stainless steel sensors and cooling coils

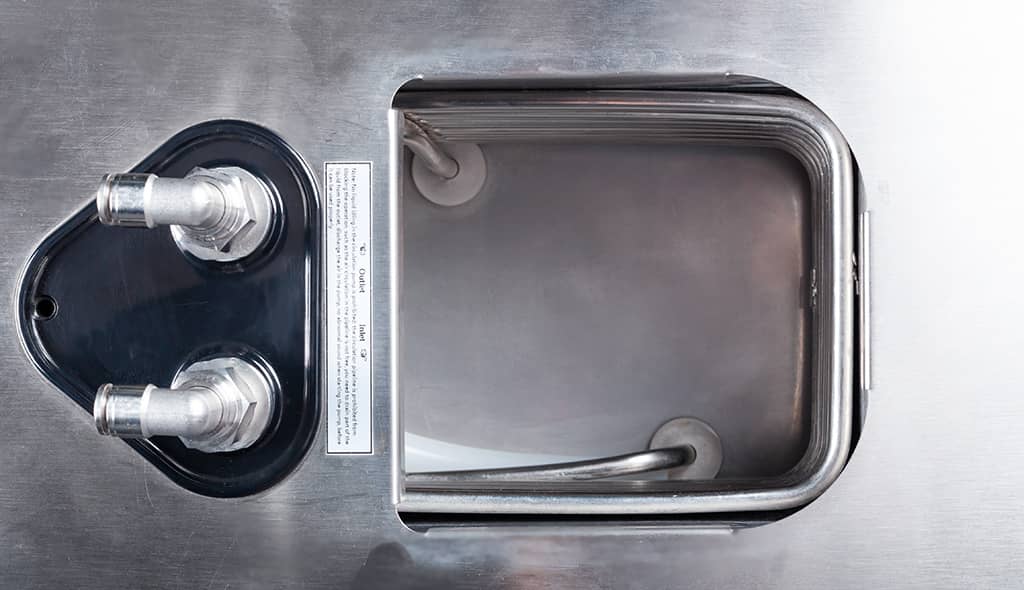

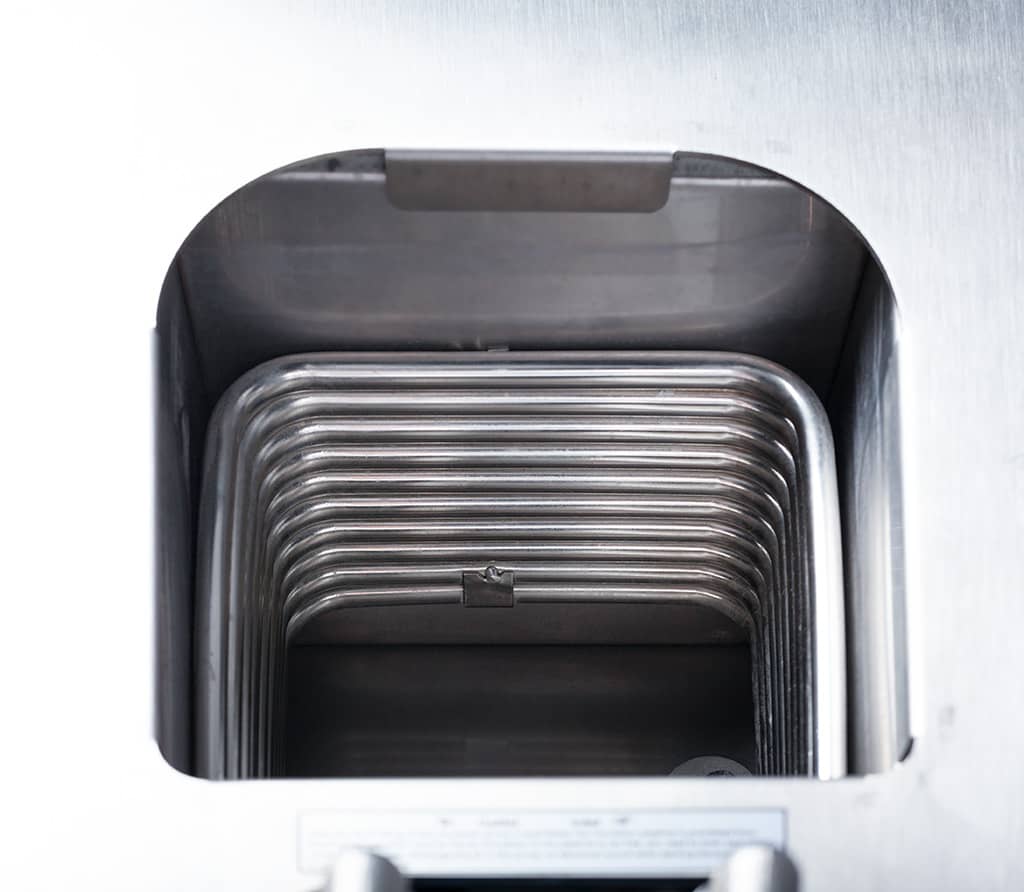

Stainless steel storage tank and cooling coils

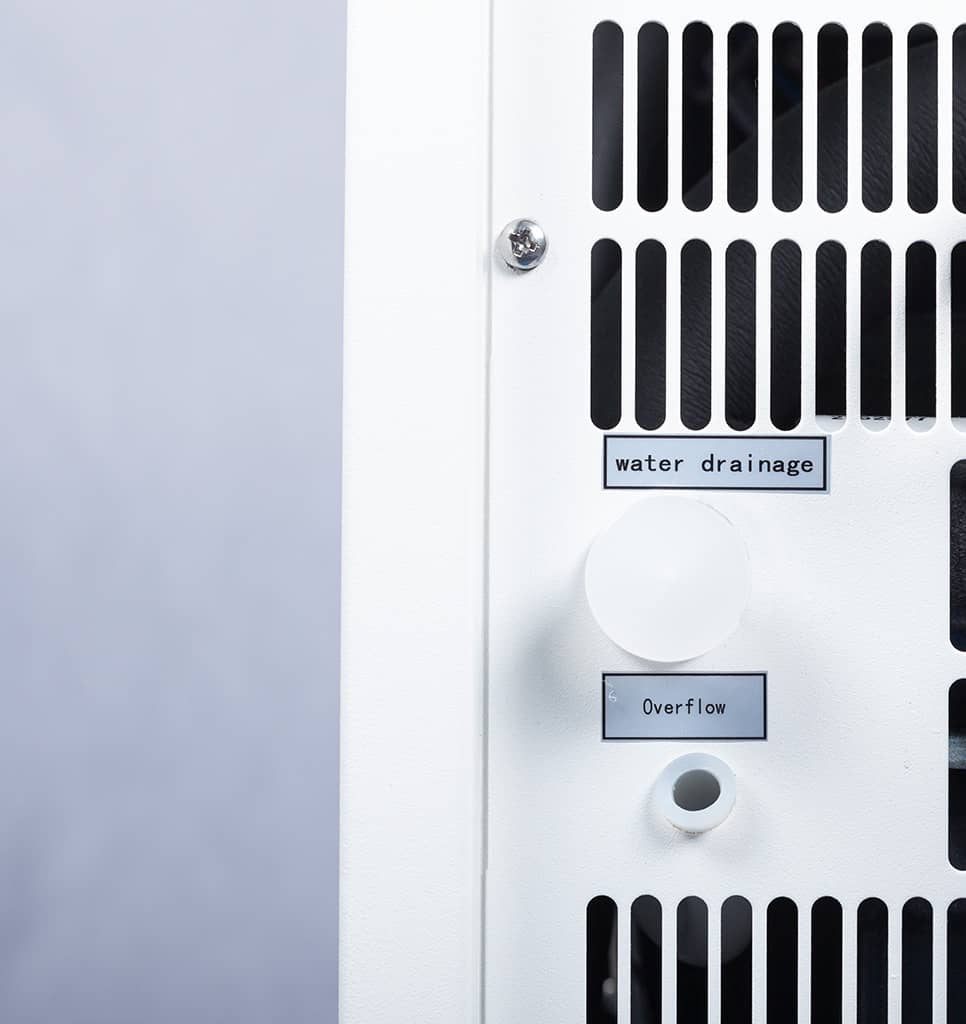

Recirculating chiller's drain port
This combination does not exist.
X
Performance and Features
Designed so that test results are in line with international standards DIN 12880.
PID temperature controller with LCD screen provides accurate and reliable temperature control.
Automatic calibration function, be able to adapt to a variety of laboratory environments.
Convenience
A product line breadth to meet a variety of needs
Wide range of options to meet a variety of experimental needs.
Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation.
Convenient design for easy maintenance
Round curved inner angle is easy to clean.
Inner chamber is made from corrosion-resistant mirror stainless steel.
Safety
Preset On/Off function.
Built-in power interruption protection function, automatic run after power interruption.
Independent over-temperature protection meets DIN 12880 International standard requirements.
Temperature deviation alarm.
Over-current protection alarm.
Storage Tank (L)
5
Liquid (L)
3.5
Lowest Temp Without Load (℃)
–20℃
Temperature Range (℃)
–20℃ to 20℃
Temperature Stability (℃)
±2℃
Cooling capacity(W)@20℃
580
Cooling capacity(W)@10℃
530
Cooling capacity(W)@0℃
470
Cooling capacity(W)@-10℃
300
Cooling capacity(W)@-20℃
100
Refrigerant
R404A
Whole unit power(W)
550
Electrical Plug Type
NEMA 5-15
Power Requirement
115VAC / 60Hz
Safety Features
Delay, leakage, overcurrent, overvoltage
Pump type
DC Magnetic Drive Vortex
Recirculating Pump Power(W)
30
Pump Flow Rate(L/min)
6
Max. Pump Head(m)
9
Pump Max. Pressure (psi)
13 (90KPa)
Inlet/Outlet Tube OD(mm)
Ø10 (DN15)
Inlet/Outlet Fitting Type
Push-to-connect
Feet / Caster
Feet
Noise (dB)
≤45
Liquid Tank (H x W x D) (mm)
Exterior (H x W x D) (mm)
Net Weight(kg)
32
Liquid tank Dimension(mm)
240 x 150 x 150
Exterior Dimension(mm)(Excluding casters)
230 x 450 x 511
Supported Rotavaps(Capacity x Units)
2L x 1
SKU Number
BRC15103U
8
5.2
900
800
730
Cooling capacity(W)@–10℃
570
Cooling capacity(W)@–20℃
250
600
Delay, leakage, overcurrent, overvoltage (Put in all models) (
Locking Casters
41
240 x 200 x 170
315 x 455 x 624
5L x 1
BRC15105U
15.5
13
1800
1500
1400
1000
500
R410A
1300
60
17
15
22 (152KPa)
Ø12 (DN15)
≤55
270 x 240 x 240
400 x 500 x 739
5L x 2 or 10L x 1
BRC15110U
25
2800
2500
2100
1900
1600
208~230VAC / 60Hz
NEMA 6-15
≤65
350 x 350 x 250
450 x 600 x 82
76
450 x 600 x 821
10L x 2 or 20L x 1
BRC15120C
