Performance and Features

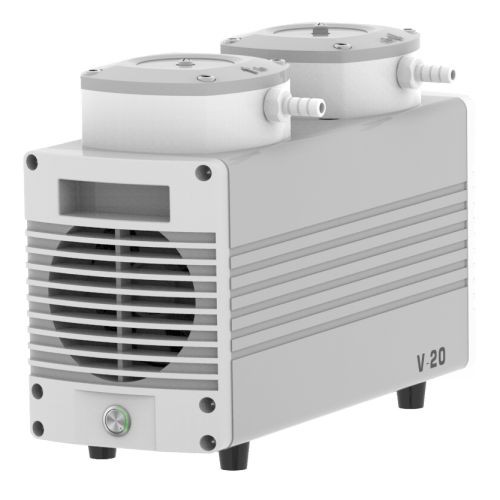

THE BEING V Series pumps are characterized in particular by using corrosion-resistant materials such as all-around PTFE for the pump head, FFPM for the valves, and structured diaphragm with a PTFE coating.
Convenience
By providing full solvent recovery, the BEING V series pumps eliminate the chance of dangerous solvents entering the working lab environment.
Maintenance Free Operation - The BEING V series pumps are easy to operate and literally maintenance-free. No need to change pump oil or look for a water source.
|
Maximum flow (L/min) |
20 |
|---|---|
|
Pump Type |
Dual-stage Diaphragm |
|
Ultimate vacuum level (mbar) |
8 |
|
Maximum operating pressure (bar) |
1 |
|
Vacuum adjustment |
No |
|
Clean / Dry valve |
Yes |
|
Connector size (ID mm) |
10 |
|
Pump head material |
PTFE |
|
Composite diaphragm material |
PTFE |
|
Valve material |
FFPM |
|
Working system |
Continuous Duty |
|
Environmental relative humidity |
<80% RH |
|
Medium and ambient temperature |
5oC to 40oC |
|
Speed (RPM) |
1450 |
|
Interior dimension W x D x H (mm) |
165 × 315 × 210 |
|
Power consumption (W) |
120 |
|
Electrical Plug Type |
NEMA 5-15 |
Electrical requirement | 110VAC / 60Hz |
No.
Yes.
BEING puts a product identification label above the power cord.
Yes.
Yes. We would need the unit's model and serial numbers if the certificate didn't come with your BEING instrument.
| Packaging Materials | Paper box |
|---|---|
| Outside Dimensions (in./mm) | |
| 19 x 13 x 11 | |
| 470 x 330 x 285 | |
| Shipping Weight (lbs./kg) | |
| 25.74 | |
| 11.7 | |
| Freight Class | 70.0 |
| Packaging Materials | Paper box |
|---|---|
| Outside Dimensions (in./mm) | |
| 19 x 13 x 11 | |
| 470 x 330 x 285 | |
| Shipping Weight (lbs./kg) | |
| 30.58 | |
| 13.9 | |
| Freight Class | 70.0 |
| Packaging Materials | Wooden Crate |
|---|---|
| Outside Dimensions (in./mm) | |
| 21 x 17 x 14 | |
| 510 x 420 x 350 | |
| Shipping Weight (lbs./kg) | |
| 55.0 | |
| 25.0 | |
| Freight Class | 70.0 |
